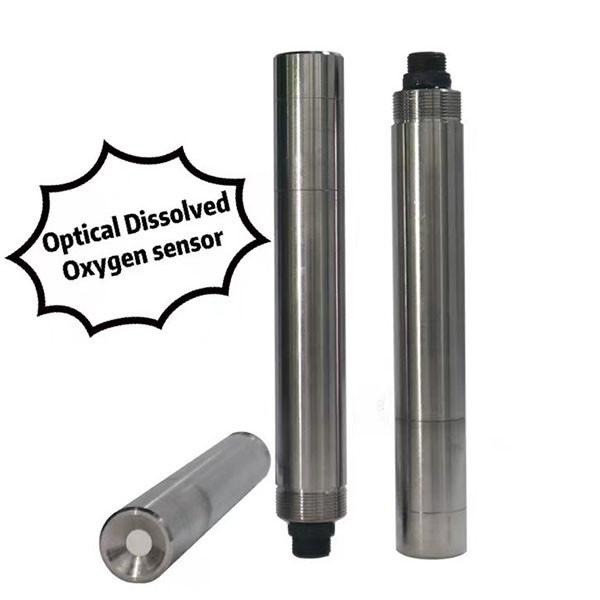

    RS485 4 20mA Optical Dissolved Oxygen Sensor Electrode Probe 50 Degree

    Ask Lasest Price
    Brand Name : Desun Uniwill
    Model Number : DS-380
    Price : $280.00 - $360.00/ Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 0~1000 pcs
    Delivery Time : 7~ 15 working days
    • Product Details
    • Company Profile

    RS485 4 20mA Optical Dissolved Oxygen Sensor Electrode Probe 50 Degree

    Introduction

    Dissolved oxygen sensor based on the latest polarographic analysis technology, the steel gauze structure of integrated silicone rubber permeable film as a permeable film, which has the advantages of collision resistance, corrosion resistance, high temperature resistance, no deformation, small maintenance and so on.

    The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be plated with titanium, which also performs well under strong corrosion.


    It is specially used for measuring PPB dissolved oxygen of boiler feed water and condensate water.


    Parameters


    ItemParameters
    ModelDS380
    PrincipleFluorescence analysis method
    Measuring range0~20mg/L or 0-200% saturation
    Response time3 sec
    Accuracy1%
    Protection levelIP68
    InstallationSubmersible
    Temperature sensorNTC
    Temperature range0~50°C
    Temperature accuracy±0.2°C
    OutputSupport RS-485, MODBUS protocol
    Power supplyDC 6~12V, current <50mA
    SizeΦ26*155 mm
    Probe cable lengthDefault 5 m, customized 10m, 15 m and 30 m cable
    Fluorescent cap life1 year
    Maximum working pressure6bar
    product materialPOM/SS316/Titanium alloy
    Calibration methodOne or Two-point calibration
    Power consumption< 0.5 W


    Quality RS485 4 20mA Optical Dissolved Oxygen Sensor Electrode Probe 50 Degree for sale
